UL Rain Test Device with a Nozzle for UL Standards Compliance
Product recommendation:
The UL rain test device is a specialized equipment used to evaluate
the water resistance of products under simulated rainfall
conditions. It is designed to meet the rigorous standards set by
Underwriters Laboratories (UL). With adjustable spray nozzles and
precise control over duration, intensity, and angle, the device
ensures comprehensive testing. Results provide insights into
product's water resistance capabilities, helping manufacturers
ensure compliance with UL standards and customer requirements.
- The device consists of two parts: rain test device (3 nozzles),
splash test device (1 nozzle).
- Casters (with brakes) are mounted at the bottom, which is
convenient for users to move and fix the device.
- The height of the spray rack can be freely adjusted by using
pulleys for lifting.
- Each nozzle is individually equipped with a pressure gauge, which
can independently display the current spray pressure.
- Each nozzle has a separate ball valve to adjust the current spray
pressure.
- The nozzle spacing is fixed according to standard requirements and
cannot be adjusted.
- Rain-test spray nozzles are adopted from Underwriters Laboratories,
which meets the standard requirements.
The main technical data:
| Item | Parameters |
Lifting height | Approx 1000-2000mm |
Branch pipe spacing | 710mm |
Branch pipe length | 305mm |
Number of of nozzles | 1 |
Internal diameter of tube | 12.7mm |
Number of pressure gauges | 5 |
Pressure gauge range | 0-400kpa |
Spray / Splash angle | 45° |
Usage Scenario:
The UL Rain Test Apparatus is designed for assessing the water
resistance and durability of electrical products, components, and
systems under simulated rainfall conditions. It finds applications
in diverse scenarios, including outdoor lighting fixtures,
electrical enclosures, solar panels, automotive parts, and any
equipment intended for use in wet environments.
Installation requirements:
- Aisle: Before the equipment enters the factory, please confirm that
the space in the aisle, elevator, laboratory, etc. of the factory
area is sufficient for the equipment to pass through.
- Water source: Please prepare clean water source.
- Site space:≥W2000×D2600×2500mm
- Users are required to prepare a separate space with drainage
channels, and the ground and walls should be waterproofed.
Notes:
1 The pictures in this document are for customer reference only,
and there may be color differences between the actual model and the
pictures.
2 This document only lists some test standards, which does not mean
that other test requirements and standards cannot be conducted.
Welcome to communicate and discuss with us.

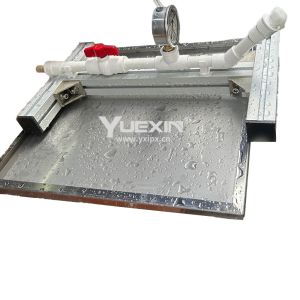

The detail picture of product:
nozzle
